Instantaneous Frequency Estimation

Any time-frequency representation of a signal contains crucial information on the characteristics of the signal. We deal with the estimation of the instantaneous frequency of signals corrupted by additive noise based on the use a time-frequency representation of the analyzed signal, followed by a morphological treatment of the image obtained. Any time-frequency representation of an acquired signal is concentrated around the instantaneous frequency law of its useful component (the projection of the ridges of the time-frequency representation on the time-frequency plane) and realizes the diffusion of its noise component. So, extracting the ridges of the time-frequency representation, the instantaneous frequency of its useful component can be estimated. Different time-frequency representations have different degrees of concentration around the instantaneous frequency law of the useful component. One of the best time-frequency representations in what concerns this concentration is the Wigner-Ville distribution. Unfortunately it contains interference terms. They can be reduced by the conjoint use of the Gabor and Wigner-Ville time-frequency representations of the same signal.

(a) Gabor representation of the useful component.

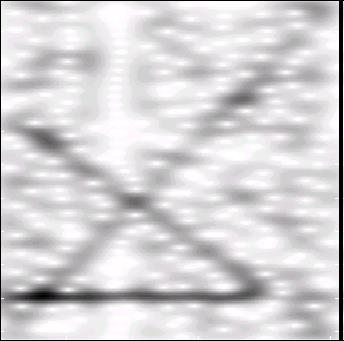

(b) Gabor representation of the acquired signal (useful component plus a train of white noise pulses).

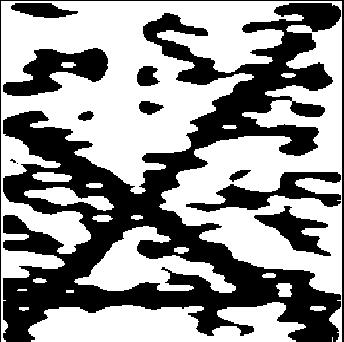

(c) Result of the non-linear filtering of the previous result.

(d) Wigner-Ville representation of the acquired signal.
(e) The new time-frequency representation of the acquired signal obtained by the product of c) and d).

Using the image of this new time-frequency representation, its ridges can be extracted with the aid of some mathematical morphology operators. This is a ridges detection mechanism producing the projection on the time frequency plane. This projection represents the result of the proposed estimation method. The main advantage of the proposed method is the fact that the signals analyzed could have very low signal to noise ratios (SNRs).

(a) Ideal IF.

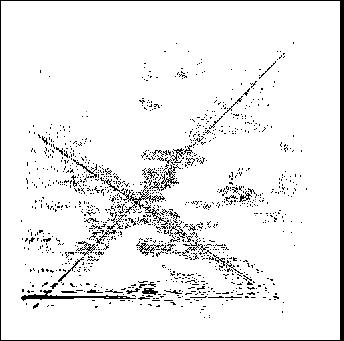

(b) Proposed method, for SNR=30dB.

Using the time-frequency based methods for instantaneous frequency estimation a frequency tracking filter was designed. An alternative approach for instantaneous frequency estimation is based on the utilization of Kalman filtering. Different applications in communications were conceived for the instantaneous frequency estimation based on Kalman filtering.
